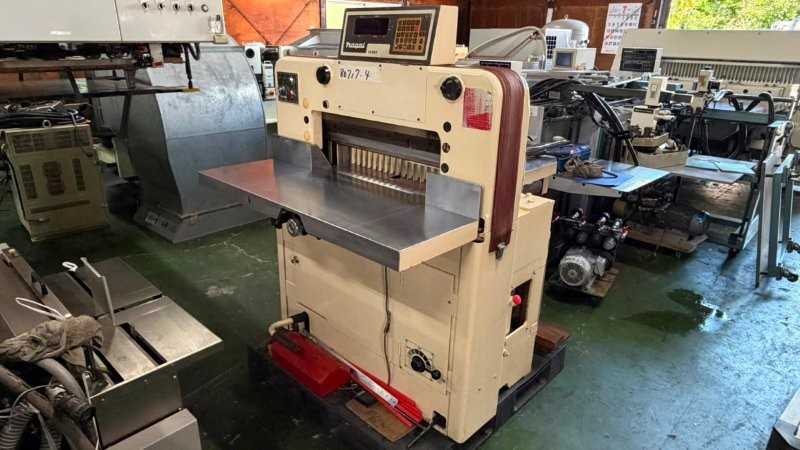

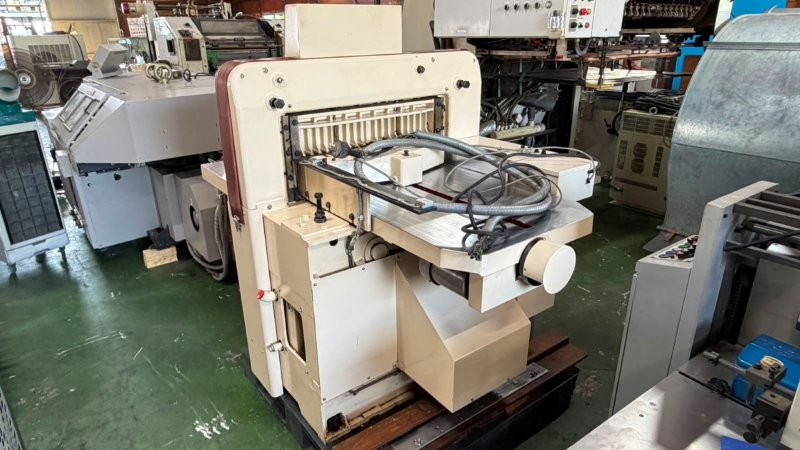

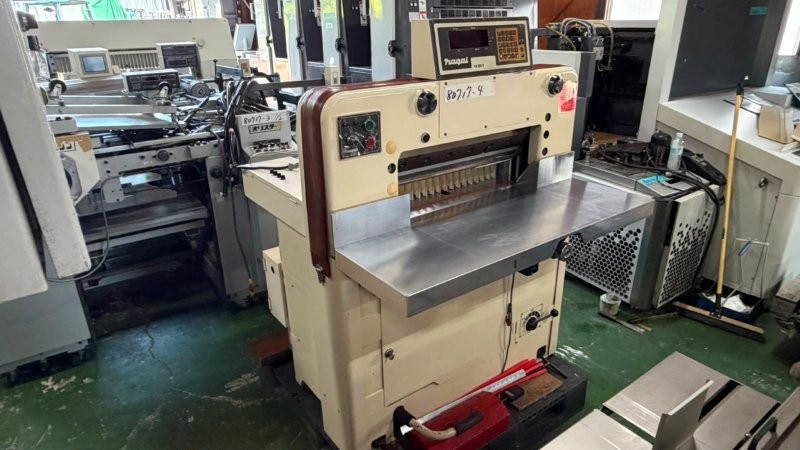

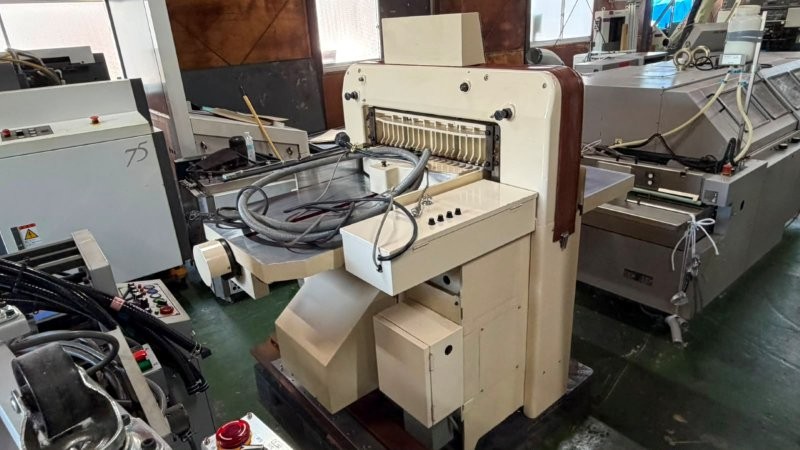

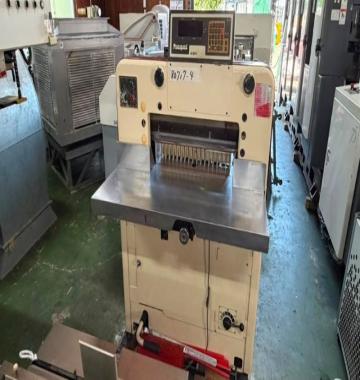

NAGAI NC-61HHDXT
The Nagai Machinery "NC-61HHDXT" is an electric, computer-controlled paper cutter designed for the paper processing industry, featuring a maximum cutting width of 610 mm and a cutting thickness of 100 mm. This model is equipped with a numeric keypad.
Main Specifications
Cutting width: 610 mm
Maximum cutting thickness: 100 mm (10 cm)
Clamping pressure: 0.2 – 1.7 tons
Memory capacity: 99 addresses (display resolution: 0.1 mm)
Power supply: 200 V
Machine dimensions: Approx. 1150 × 1500 × 1290 mm (W × D × H)
Machine weight: Approx. 1000 kg (approx. 1 ton)

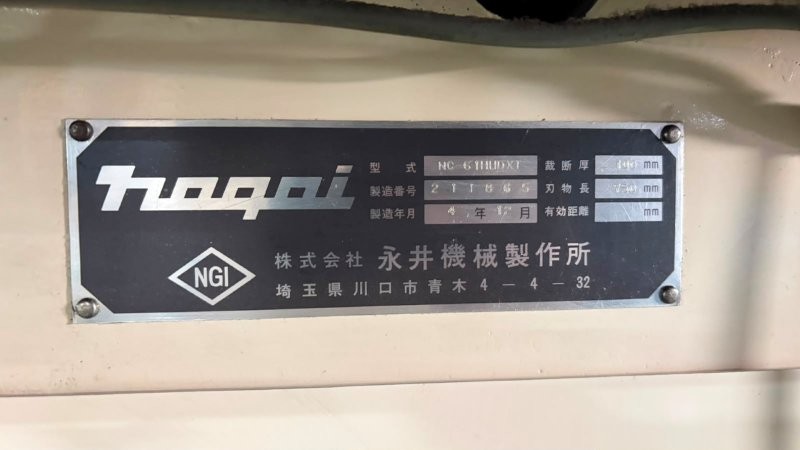

Manufacturer : NAGAI
Model : NC-61HHDXT (61cm)
Year : 1992-12
Serial no : 211865
SPARE KNIFE : 2
INSTRUCTION MANUAL : N
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
New Until
In Stock
