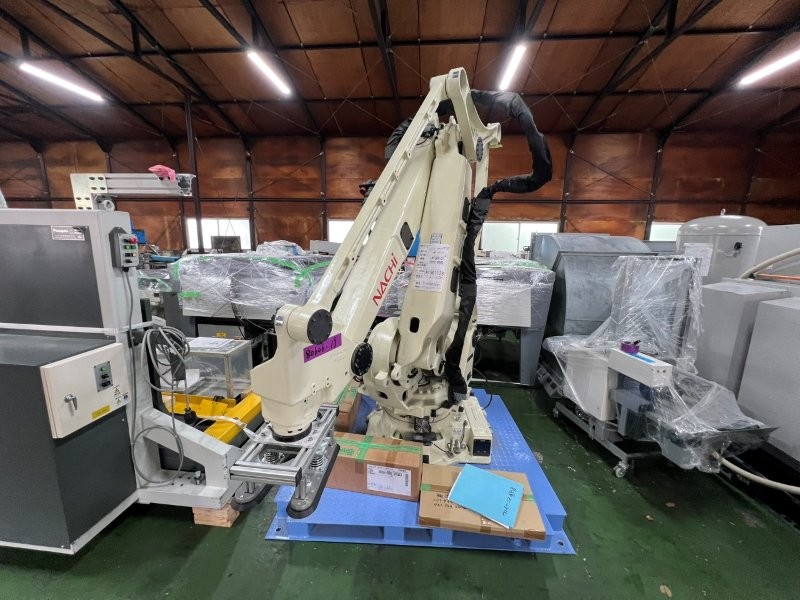

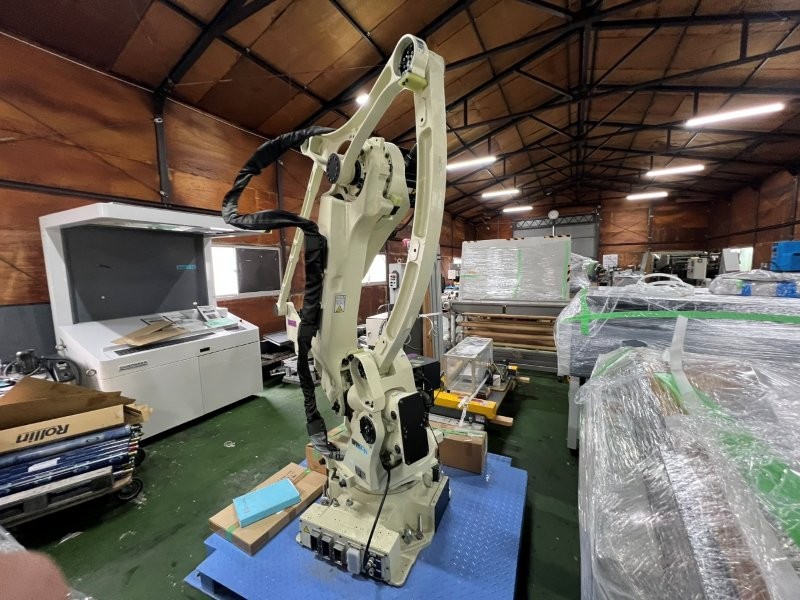

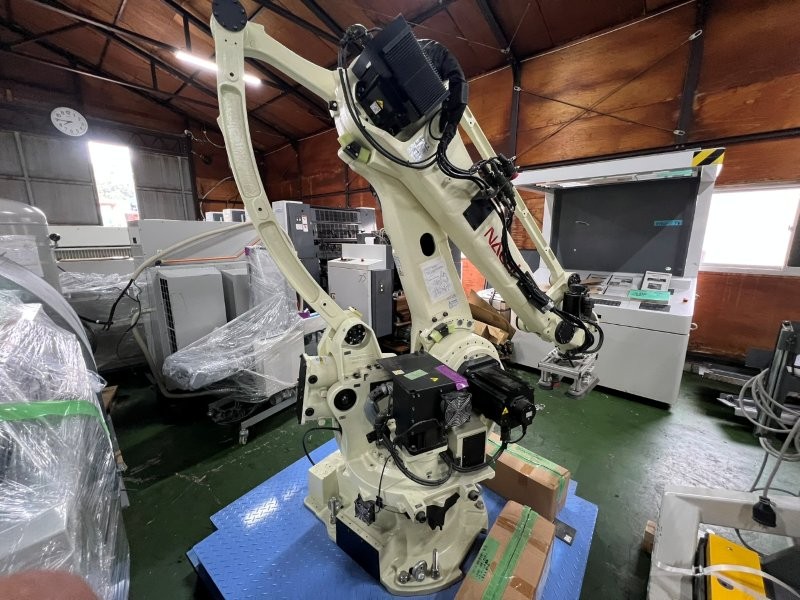

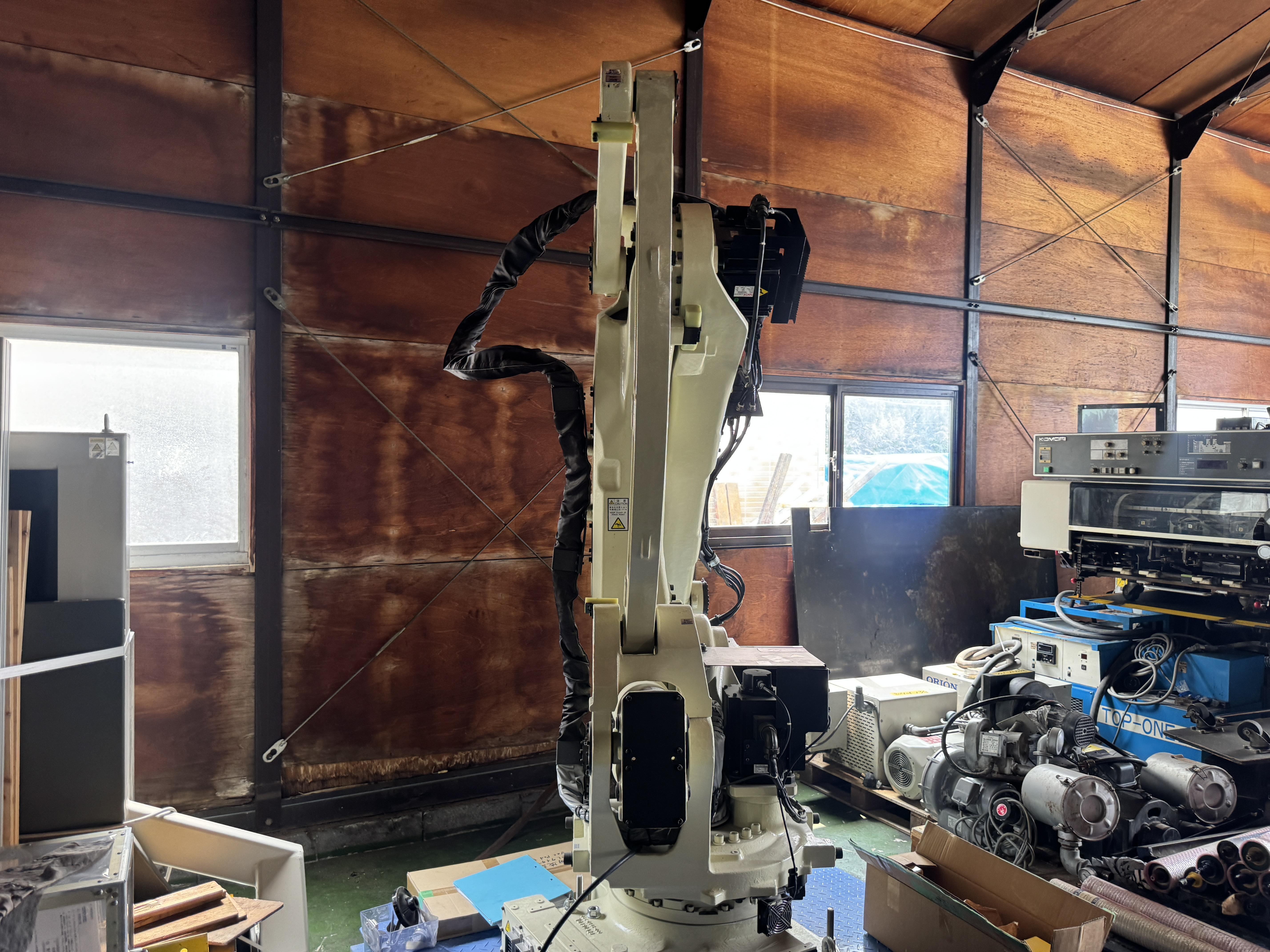

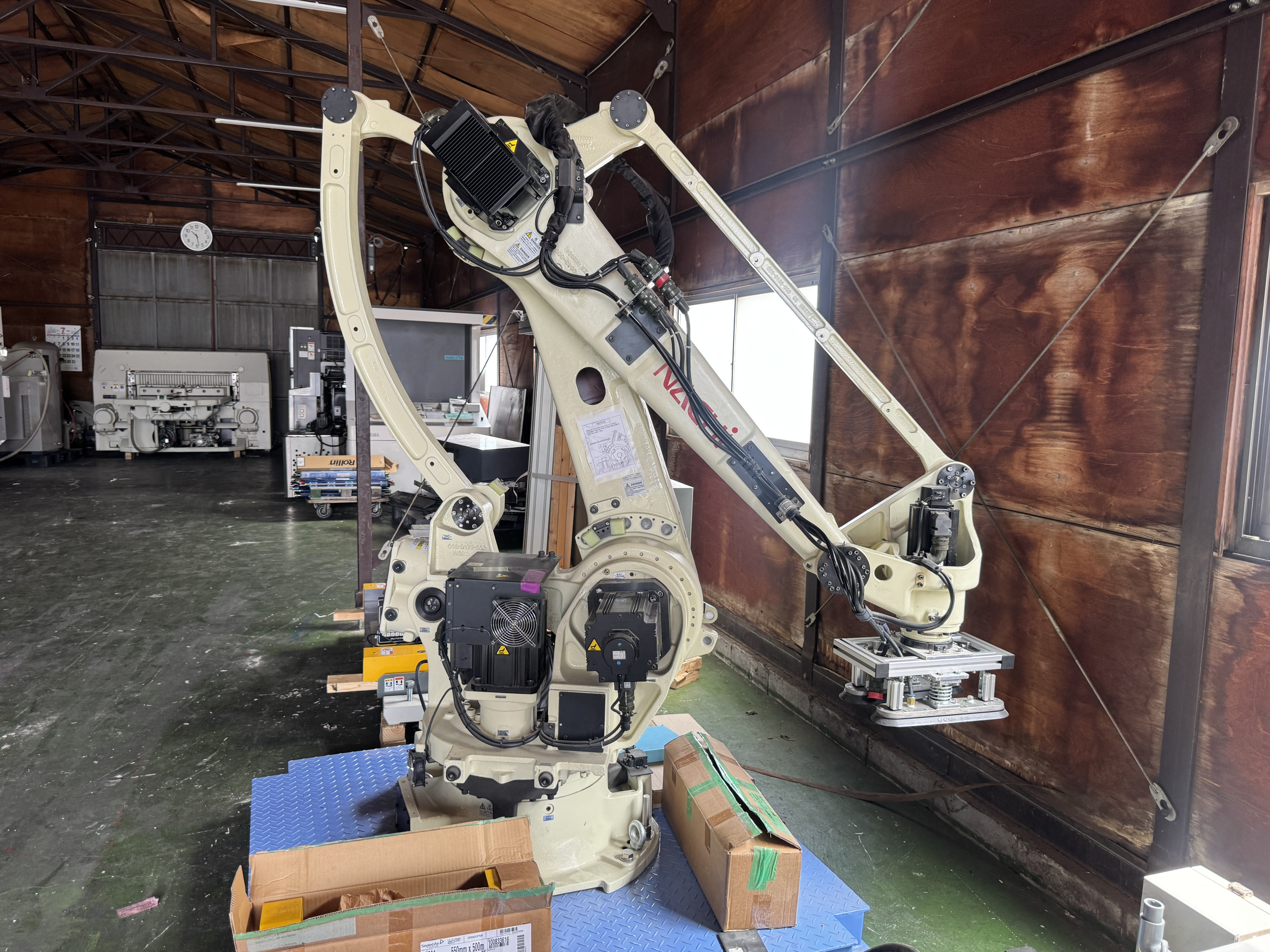

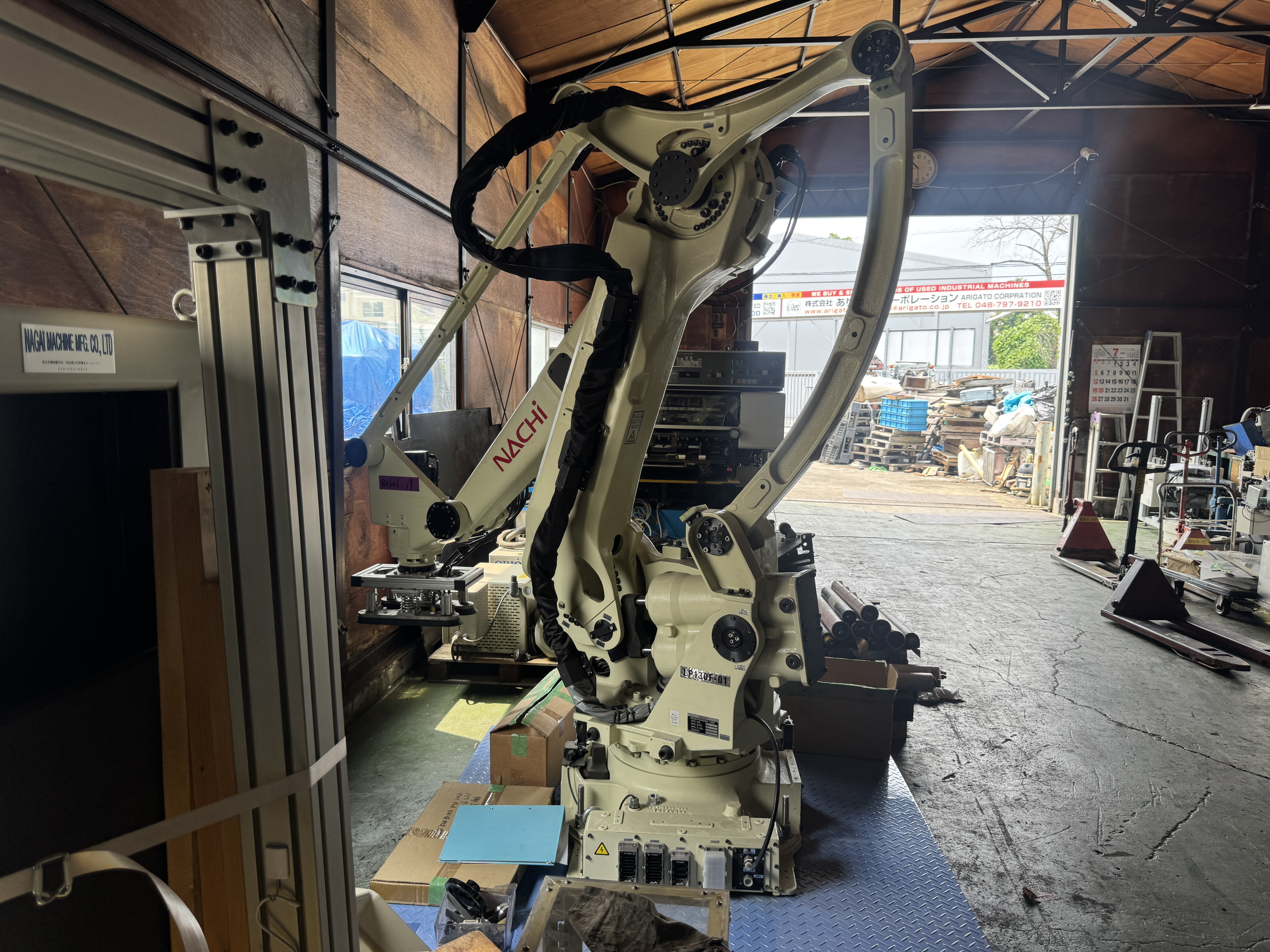

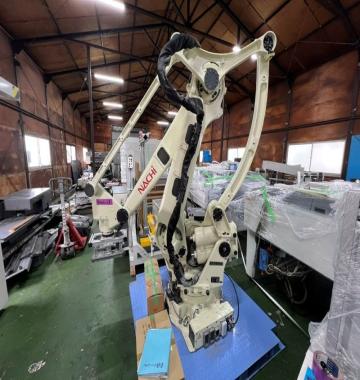

NACHI LP130F-01 High-speed palletizing robot (4-axis articulated robot)
Manufacturer : NACHI

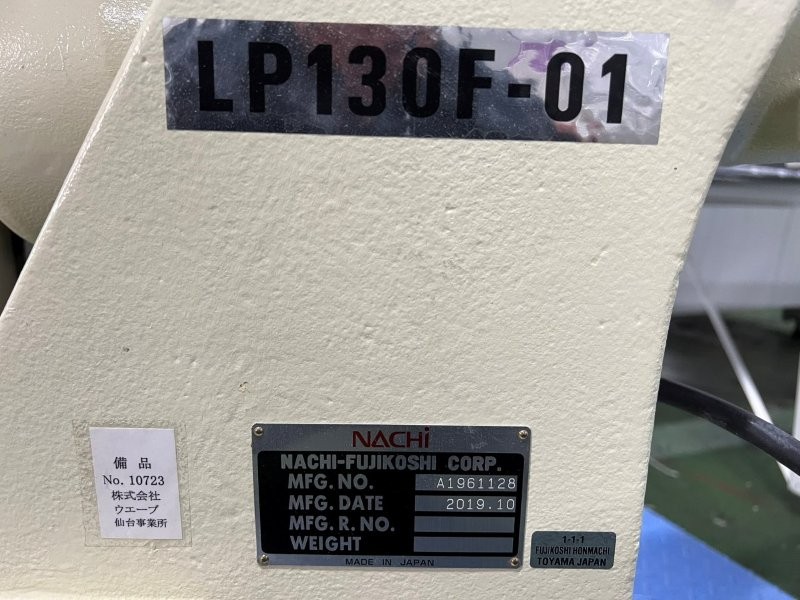

Model : LP130F-01
Year : 2019-10
Serial no : A1961128

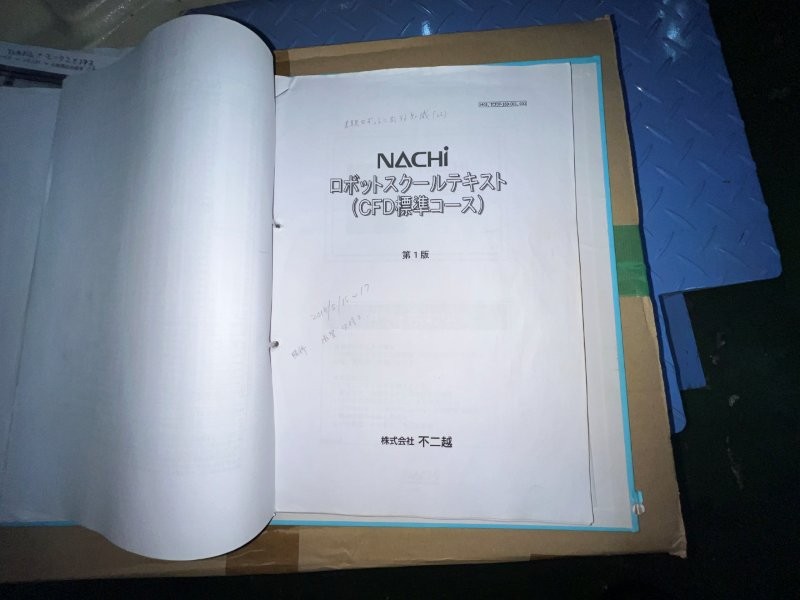

INSTRUCTION MANUAL : Y
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
Key Features and Strengths
• Outstanding High-Speed Palletizing Performance: Boasts a processing capacity of 1,500 bags/hour when handling 130 kg loads and up to 1,800 bags/hour for 60 kg loads, delivering a 20% increase in productivity compared to previous models.
• Extensive Operating Range and Flexibility: Capable of stacking up to a height of 2,212 mm on a 1,600 mm square pallet area. Additionally, the J1 axis (swivel) operates within a ±180° range, allowing a single unit to service multiple conveyors and up to six pallets.
• Space-Saving Design: Despite its wide operating range, the robot features a compact body that minimizes its own interference envelope, enabling flexible installation even in layouts with limited space.
• Ease of Operation: Interactive software specifically designed for palletizing is included, enabling intuitive teaching (programming of movements) without the need for specialized expertise.
Basic Specifications
Item Specification
• Structure / Degrees of Freedom Articulated / 4 axes
• Maximum Payload 130 kg
• Repeatability ±0.09 mm
• J1 Swivel Range/Speed ±180° / 145°/s
• Robot Mass Approx. 1,150 kg
Model : LP130F-01
Year : 2019-10
Serial no : A1961128
INSTRUCTION MANUAL : Y
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
Key Features and Strengths
• Outstanding High-Speed Palletizing Performance: Boasts a processing capacity of 1,500 bags/hour when handling 130 kg loads and up to 1,800 bags/hour for 60 kg loads, delivering a 20% increase in productivity compared to previous models.
• Extensive Operating Range and Flexibility: Capable of stacking up to a height of 2,212 mm on a 1,600 mm square pallet area. Additionally, the J1 axis (swivel) operates within a ±180° range, allowing a single unit to service multiple conveyors and up to six pallets.
• Space-Saving Design: Despite its wide operating range, the robot features a compact body that minimizes its own interference envelope, enabling flexible installation even in layouts with limited space.
• Ease of Operation: Interactive software specifically designed for palletizing is included, enabling intuitive teaching (programming of movements) without the need for specialized expertise.
Basic Specifications
Item Specification
• Structure / Degrees of Freedom Articulated / 4 axes
• Maximum Payload 130 kg
• Repeatability ±0.09 mm
• J1 Swivel Range/Speed ±180° / 145°/s
• Robot Mass Approx. 1,150 kg
