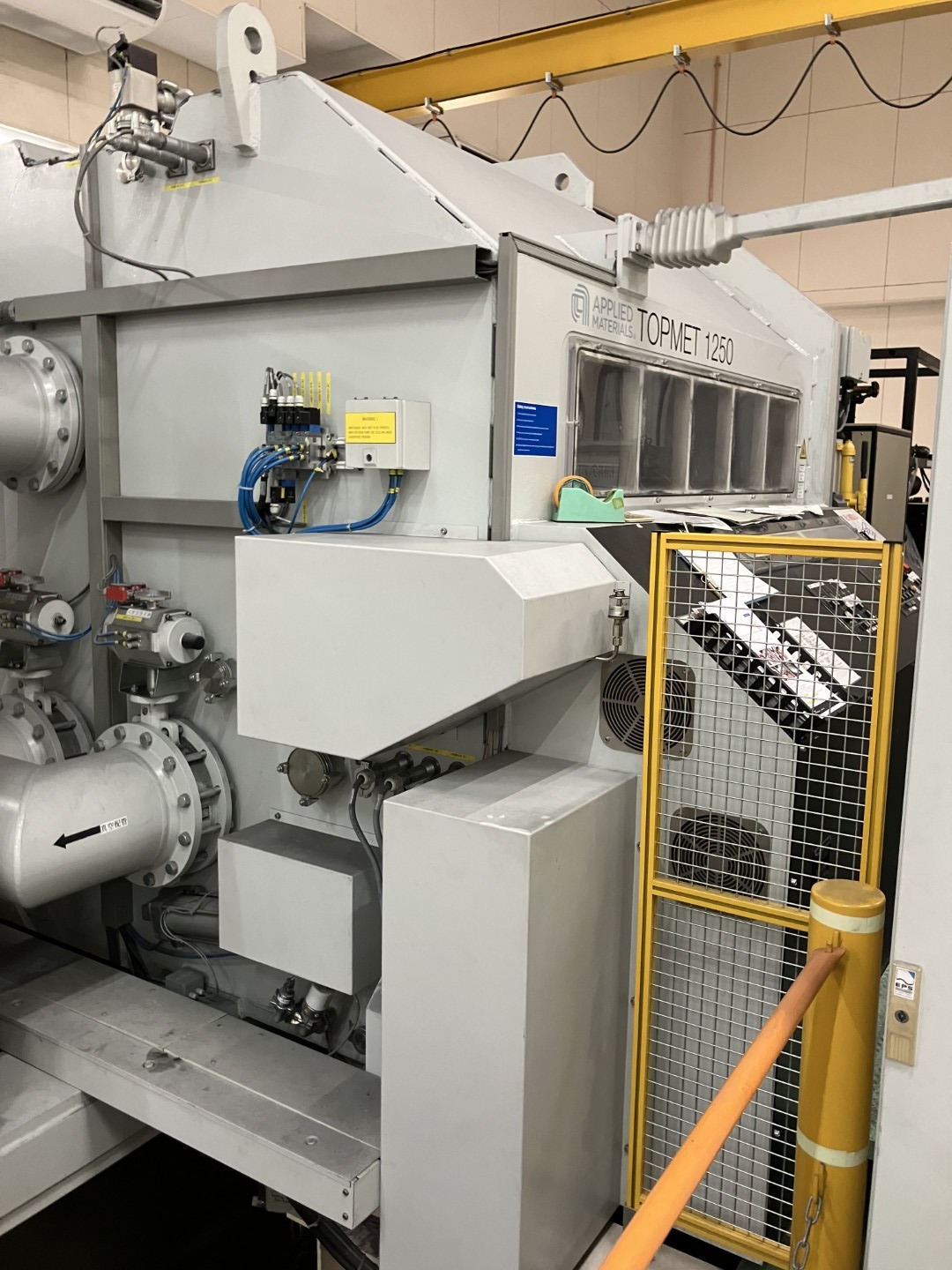

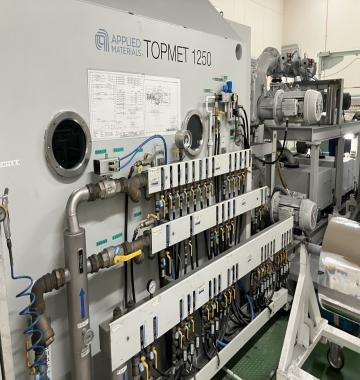

Applied Materials TOPMET 1250 Vaccuum Metalizing machine
| Item | Specification |
|---|---|
| Web Width | Max. 1250 mm |
| Substrate Types | PET, CPP, BOPP, Nylon, Paper |

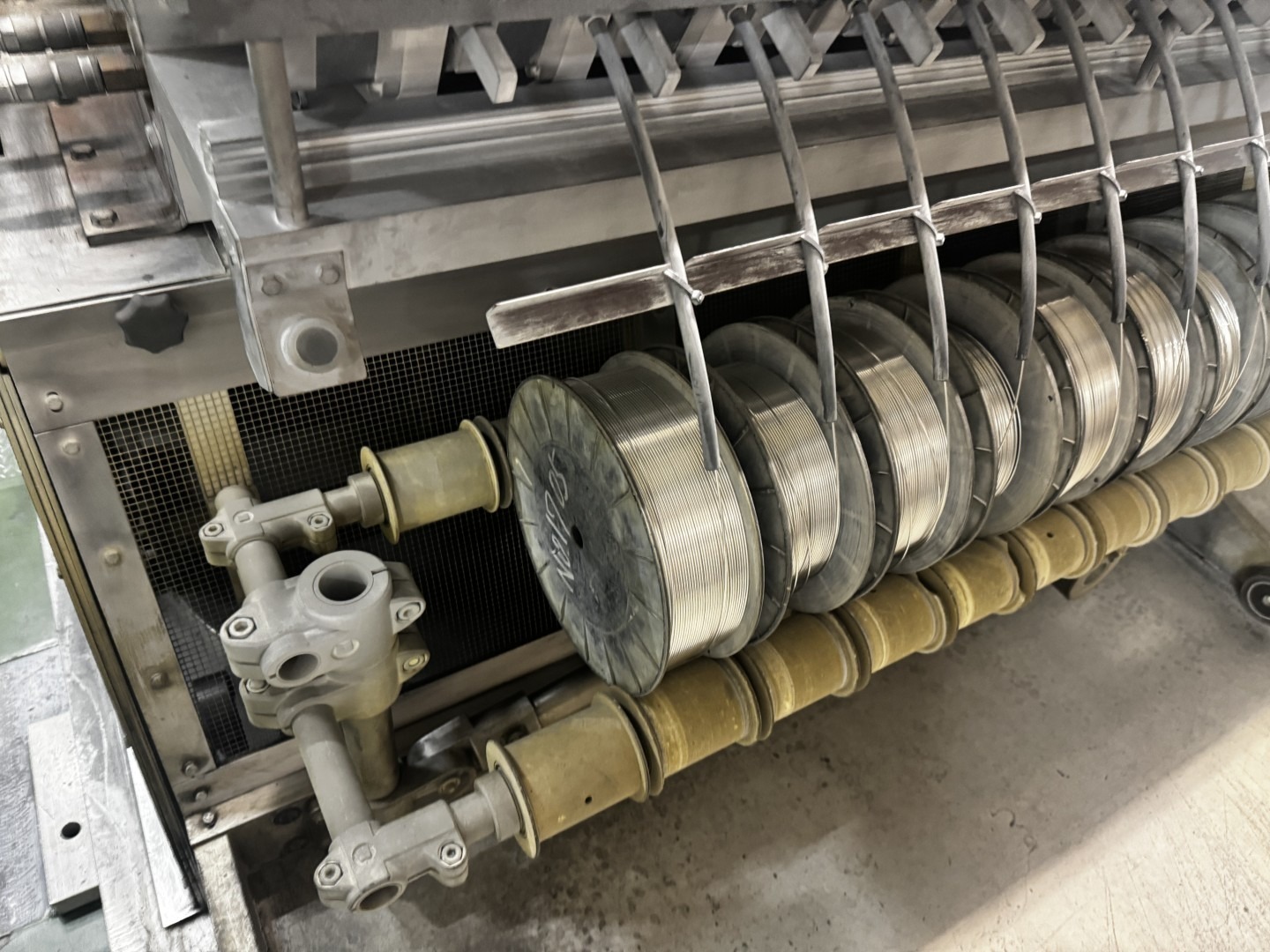

| Coating Type | Aluminum metallization (option for AlOx in newer models) |
| Max. Web Speed | Up to 600 m/min |
| Unwind/Rewind Roll Diameter | Max. 1000–1250 mm |

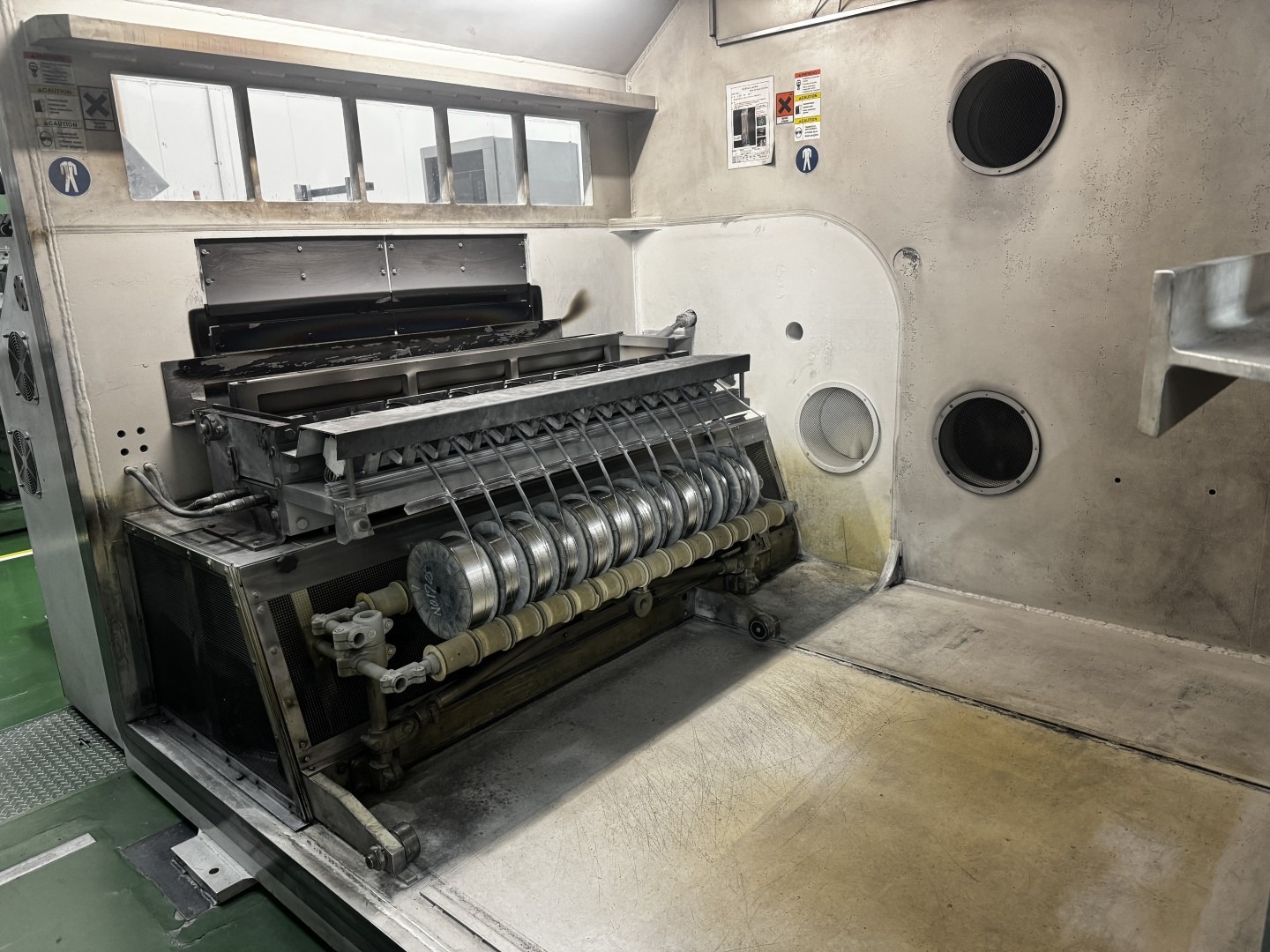

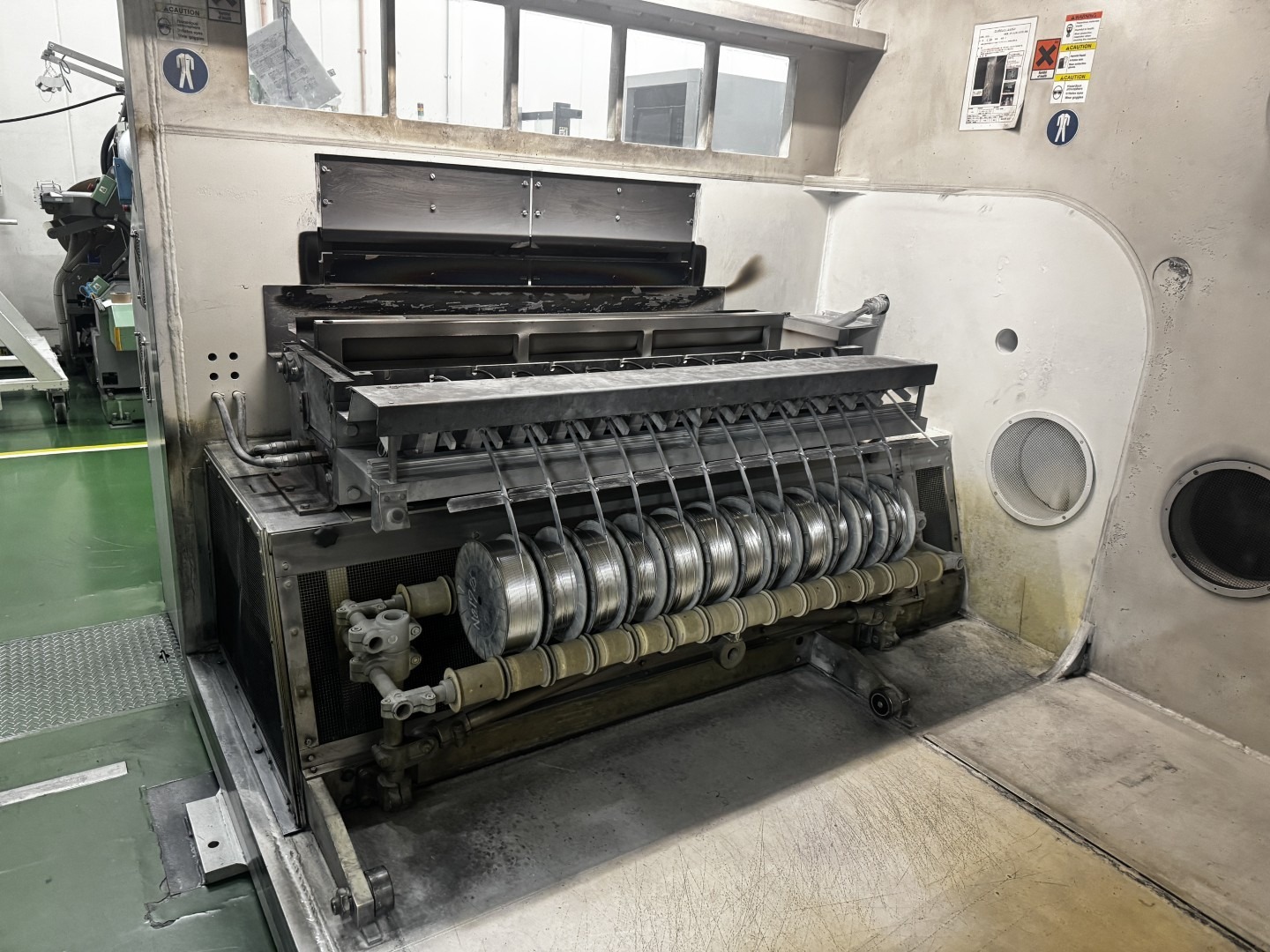

| Evaporation Source | Resistance heating boats (typically 12–16 boats) |
| Vacuum Chamber Pressure | ≤ 10⁻⁴ mbar |

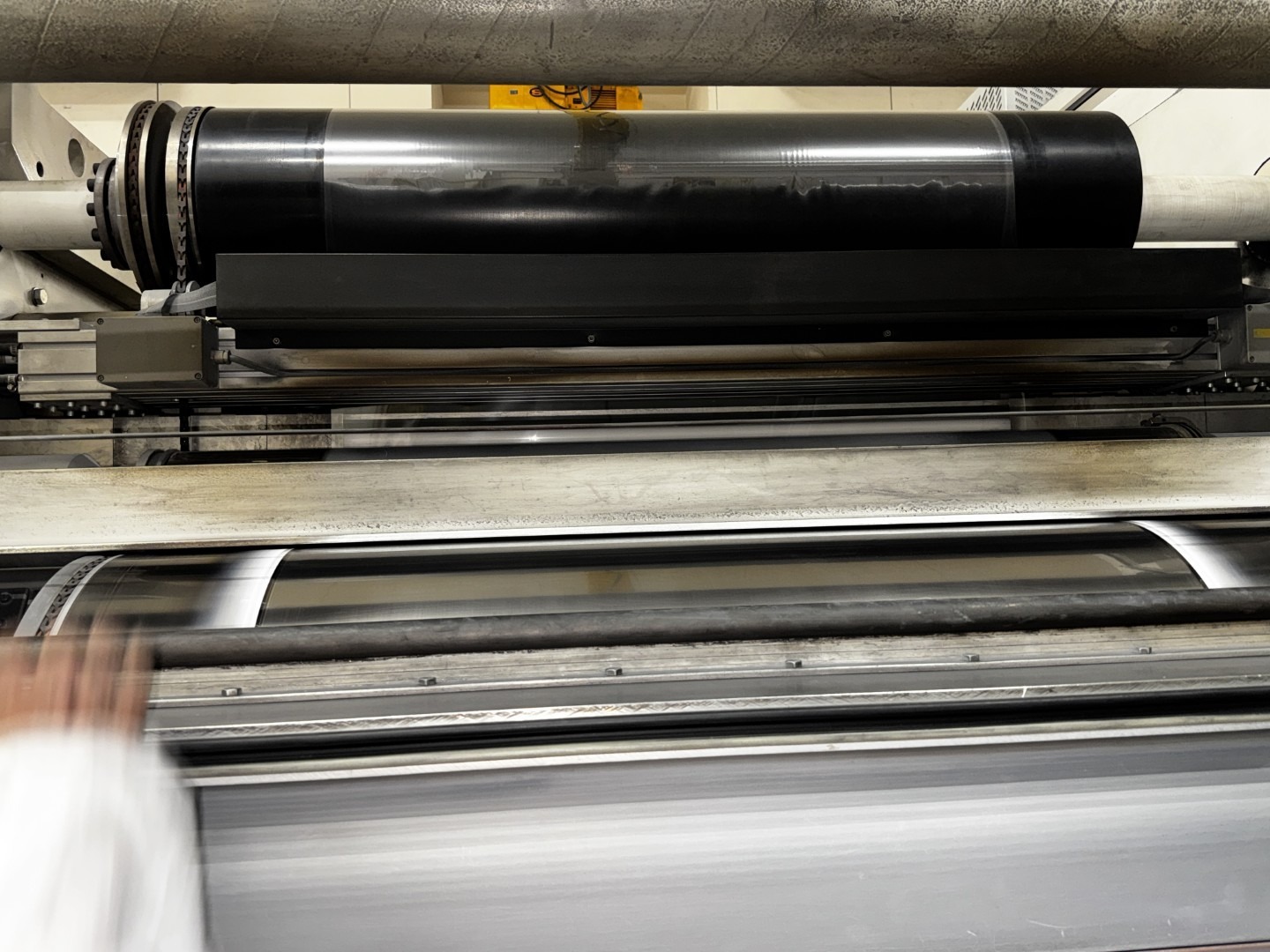

| Cooling Drum Width | Approx. 1300 mm |
| Film Thickness | 6–12 micron (typical operating range) |
| Barrier Performance | O₂ transmission ≤ 2 cm³/m²·day |
| Installed Power | Approx. 200–250 kW |

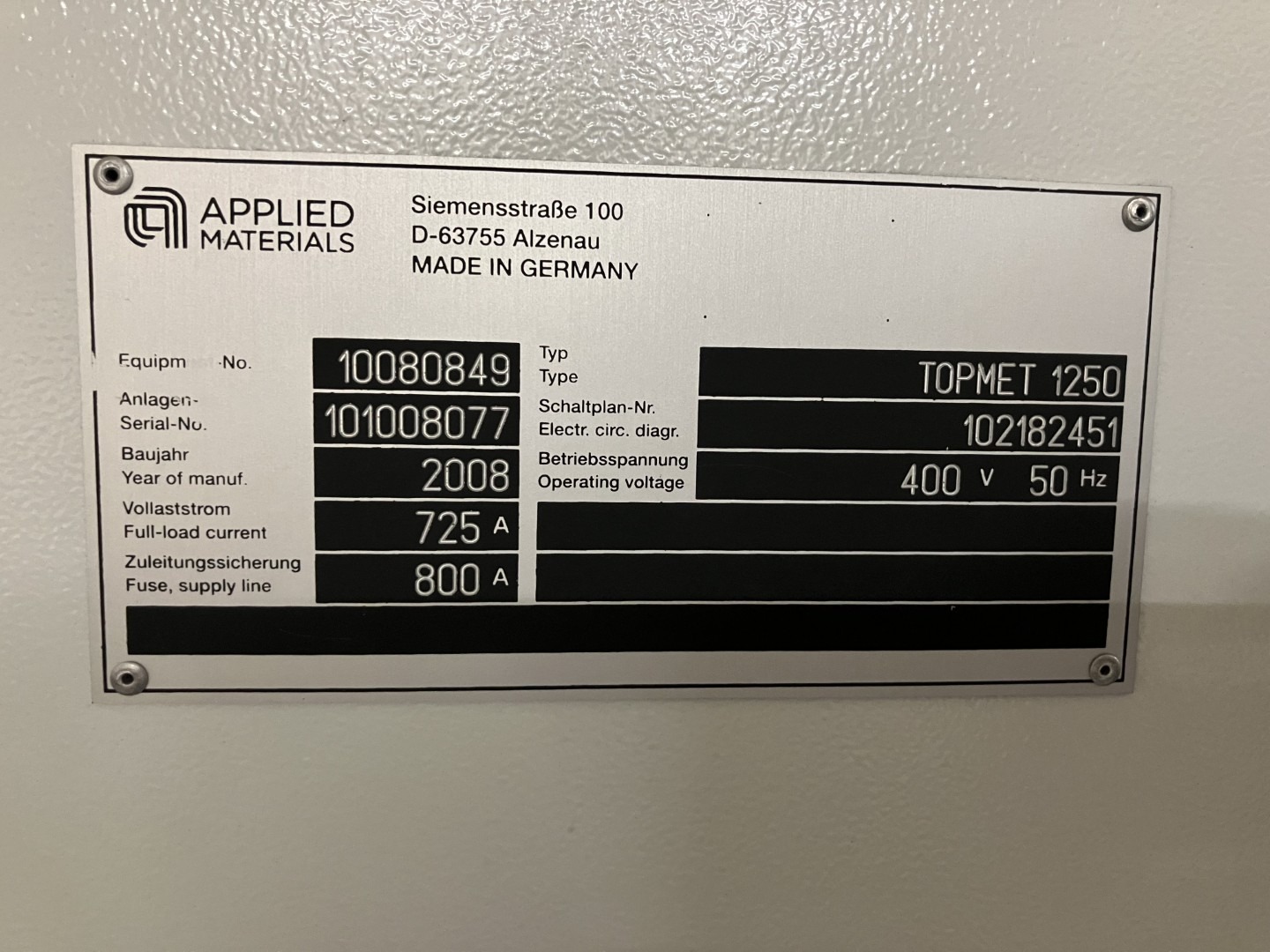

| Power Supply | 3 Phase, 400–480V, 50/60Hz |
| Compressed Air Requirement | Approx. 6 bar |

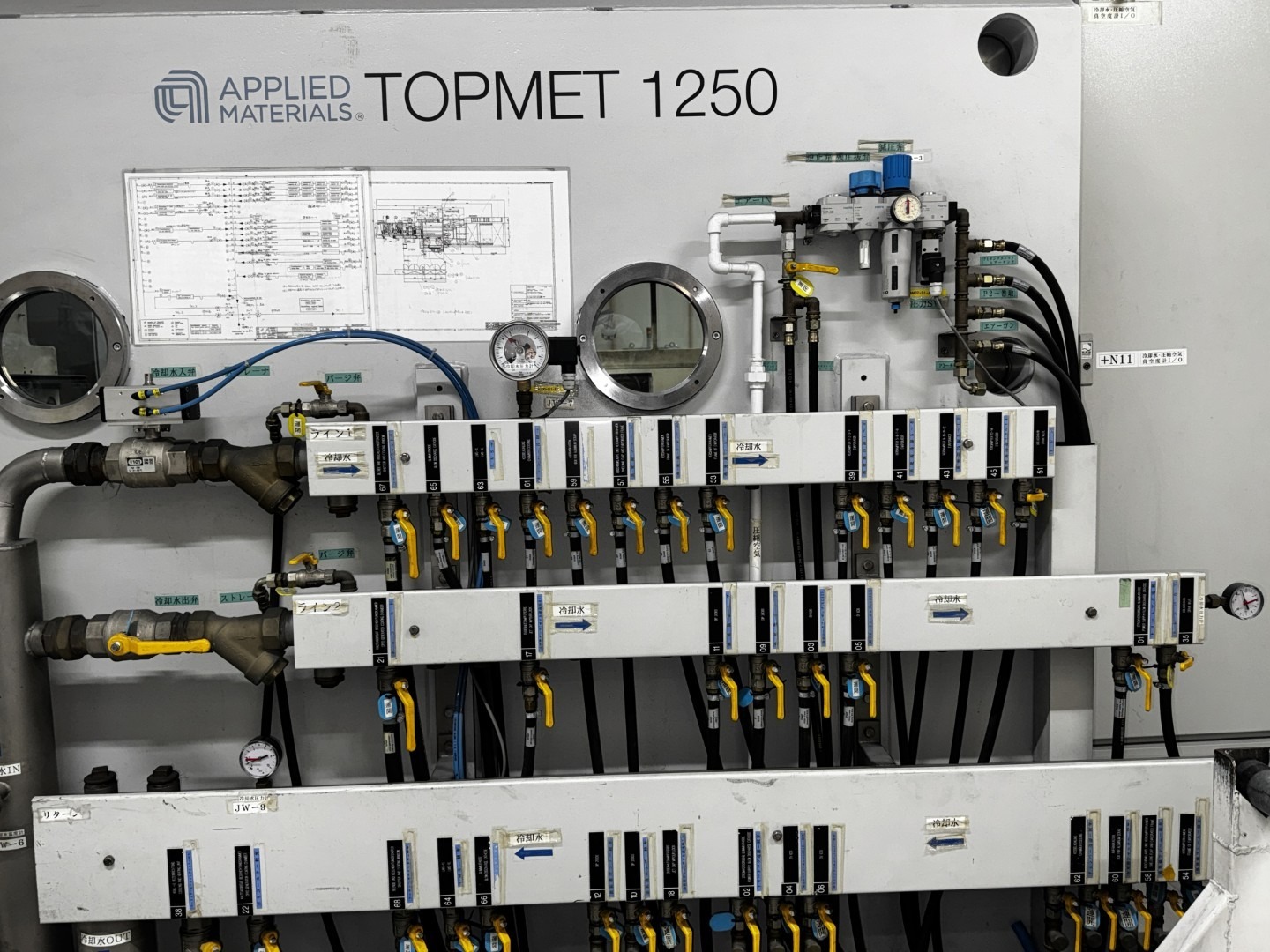

| Cooling Water Requirement | Approx. 25–30 L/min |

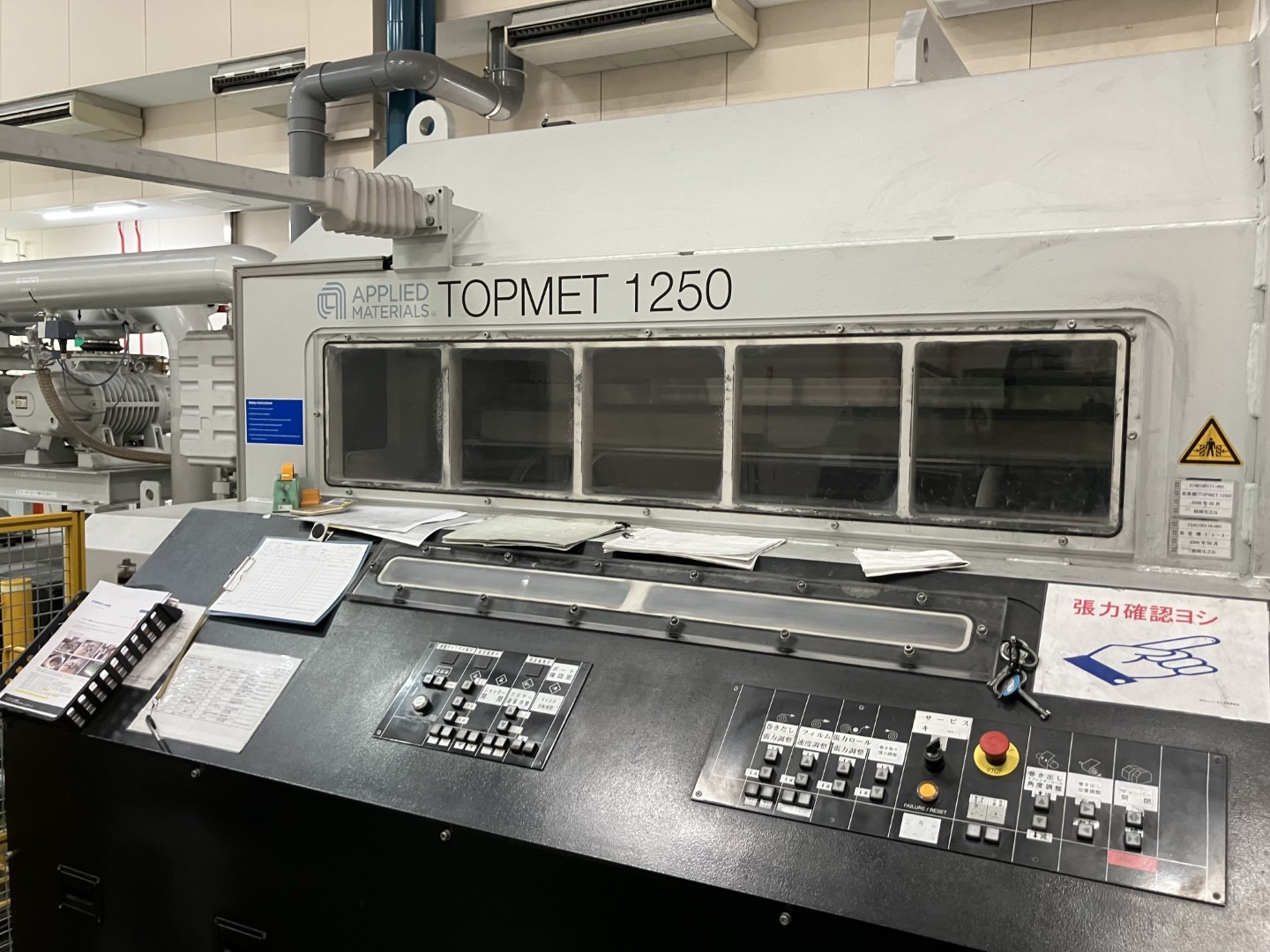

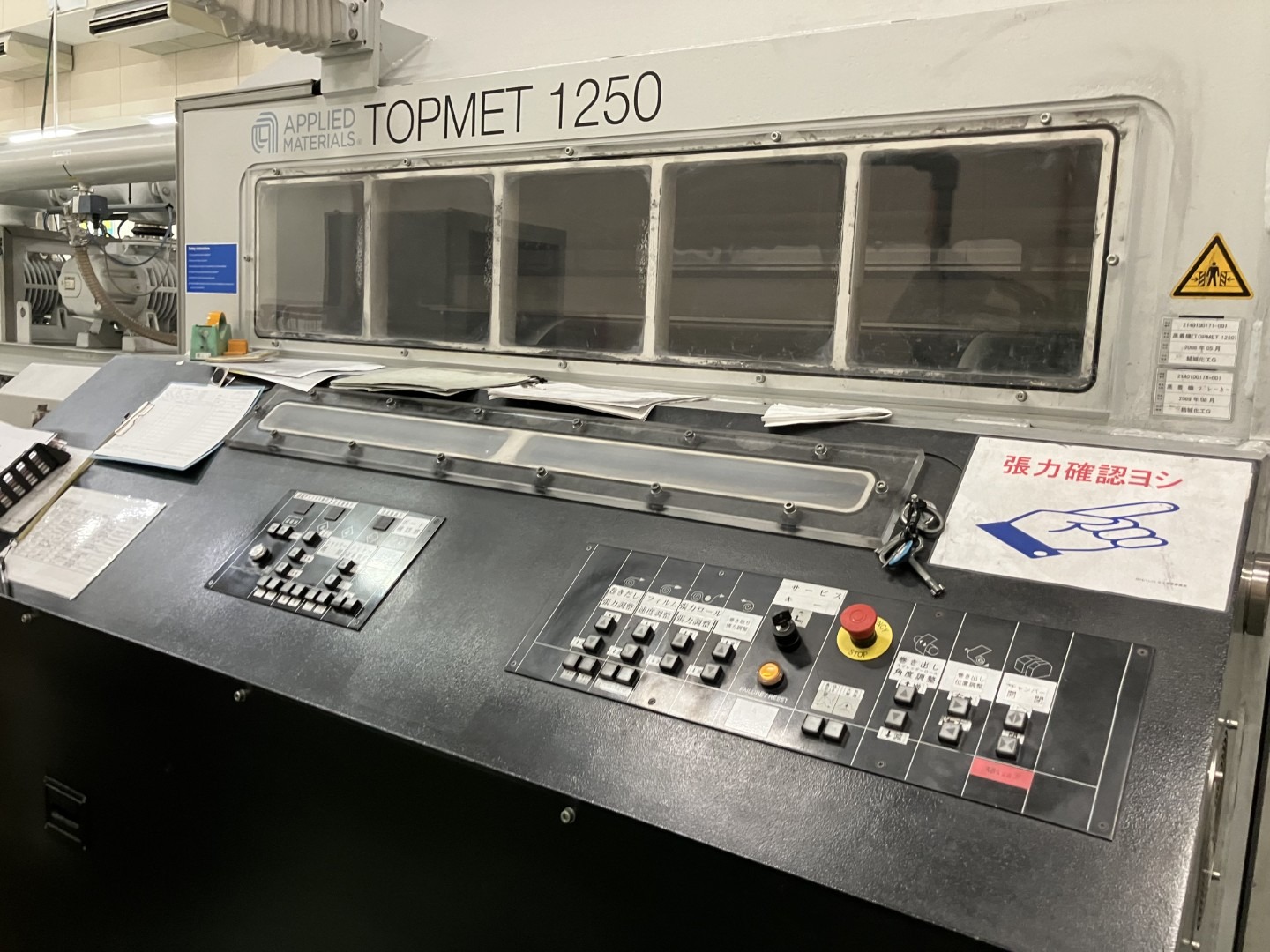

| Control System | PLC-based with HMI interface |
| Dimensions (L×W×H) | Approx. 18 m × 6 m × 4.5 m |
| Machine Weight | Approx. 30,000–40,000 kg |
