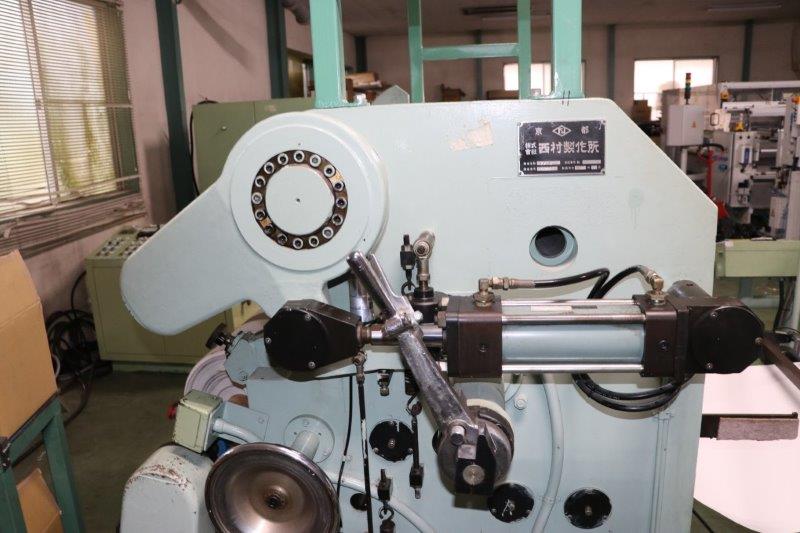

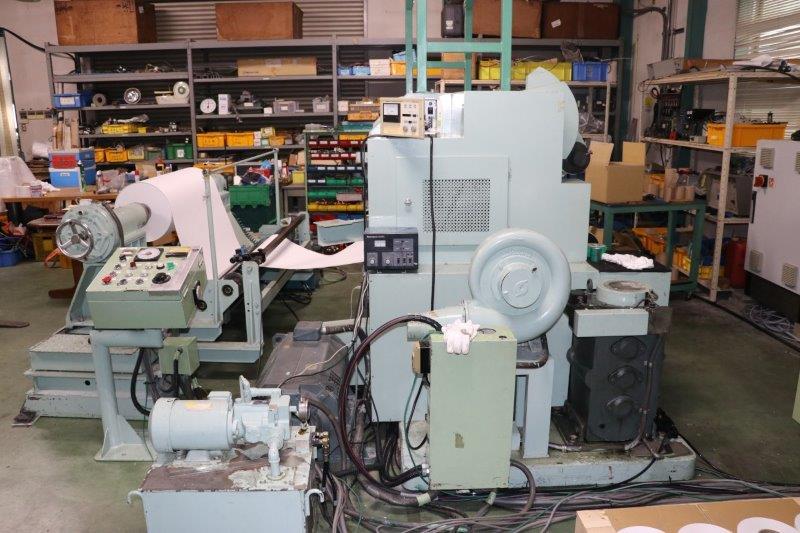

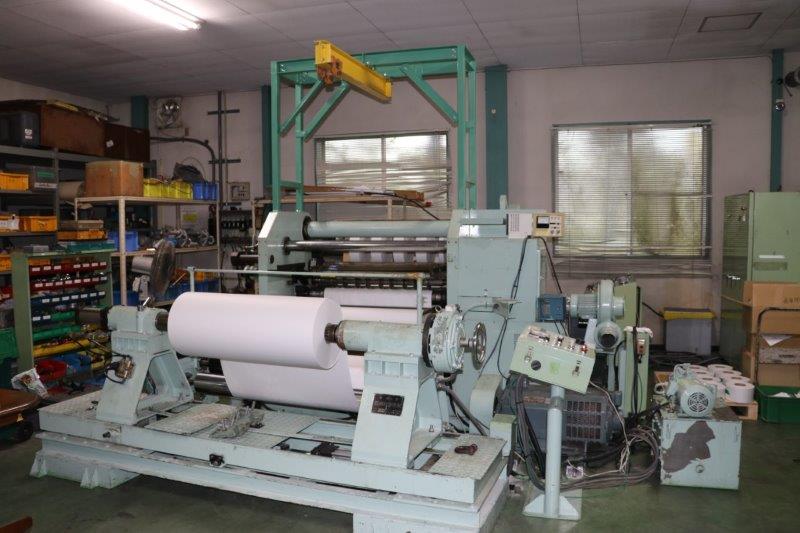

Nishimura Seisakusho TY-5 type Slitter
Roller surface length: R= 1100mm
Frame Interval: L= 1400MM
Winding Max.Diameter: 500⌀mm
Maximum unwinding diameter: 1000⌀mm

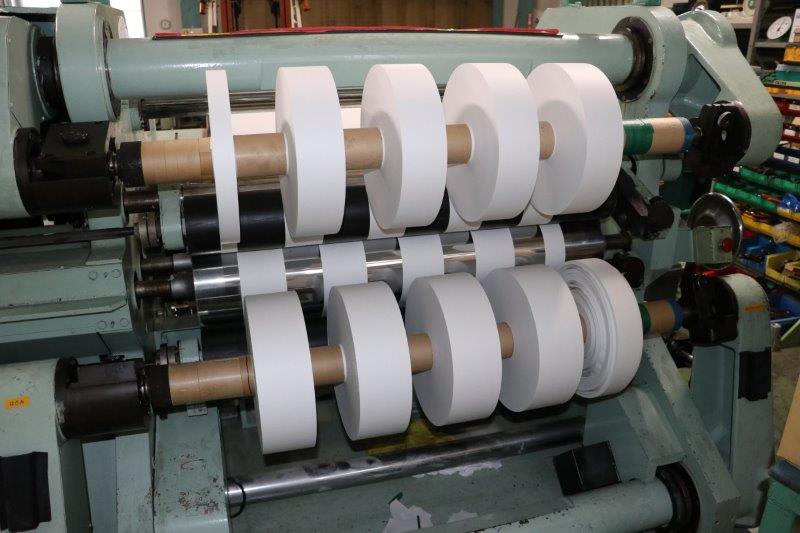

Winding spool(axis:⌀75,8): inner diameter 76.2⌀mm, 58⌀mm,75⌀mm,80⌀mm

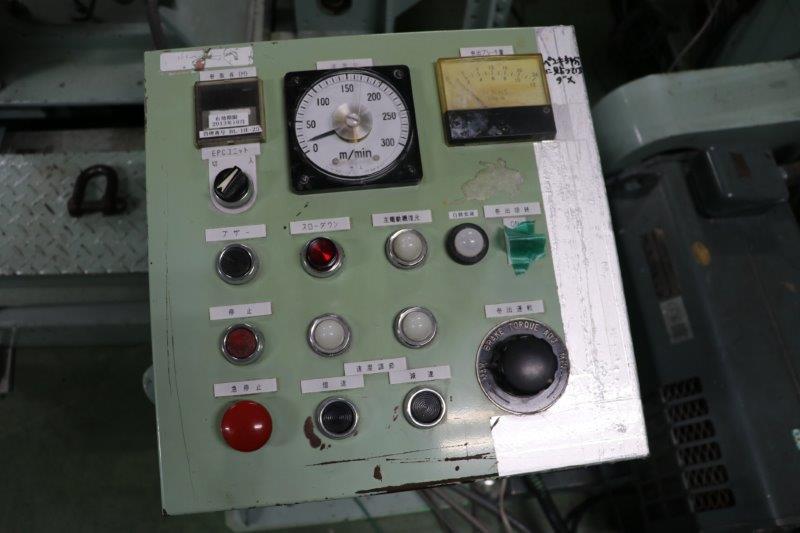

Speed: 0~300m/min
Winding tension: very good condition

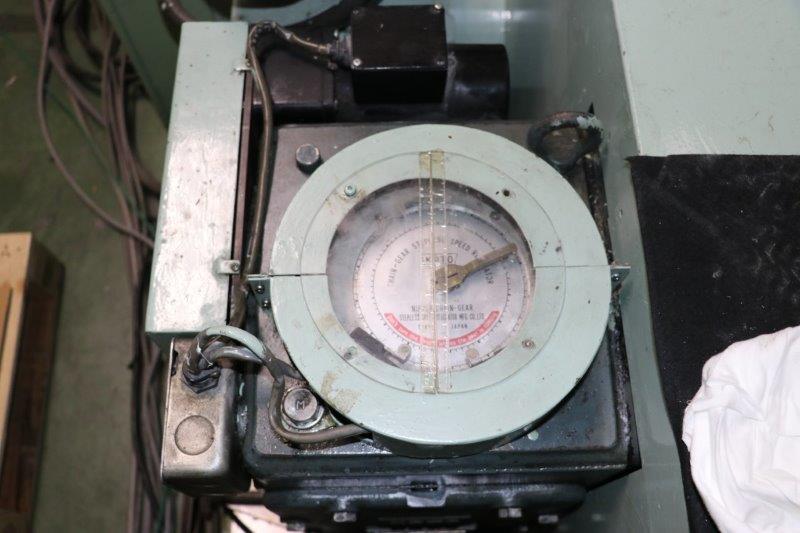

automatic speed change: Chain-type continuously variable transmission RI.V3U-V 13R 5:1

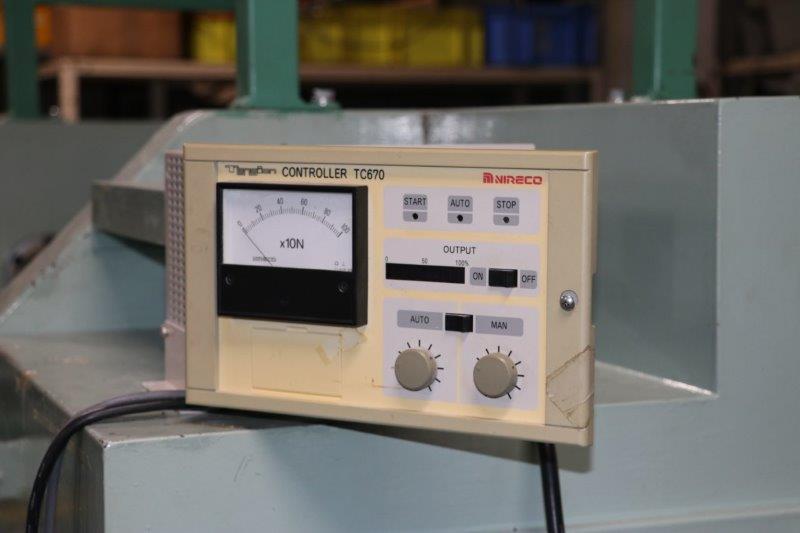

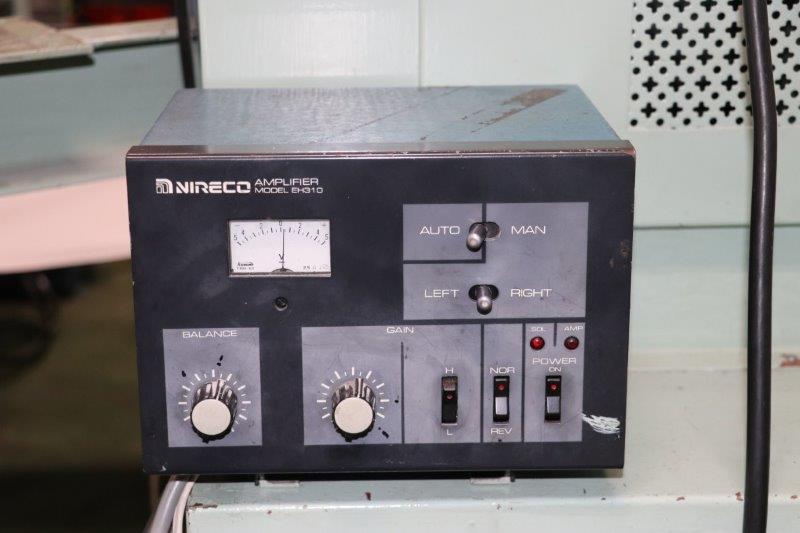

E.R.C equipment: M110-AM-LH800 (Nireco)

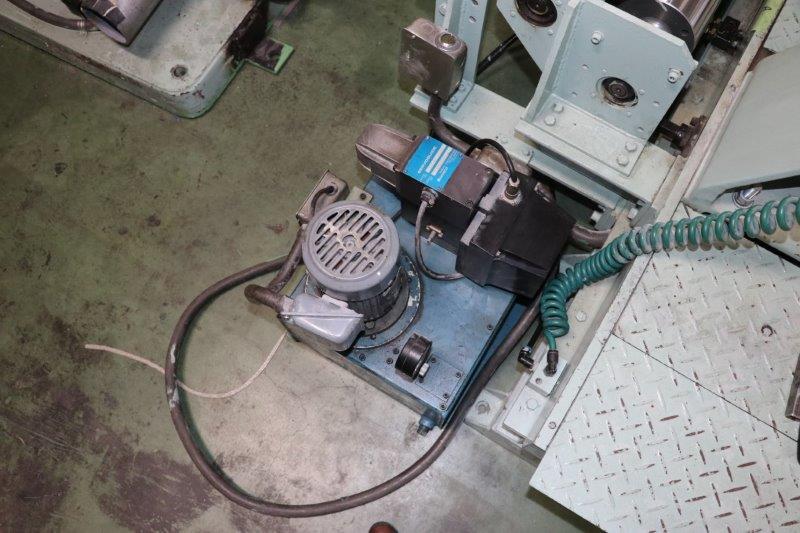

Hydraulic Unit 0.4kw, 4P
Length 3300mm x 3525 mm x 1515mm
Weight: 6 ton
