NISHIBE HSE-600-SS
■Main specifications

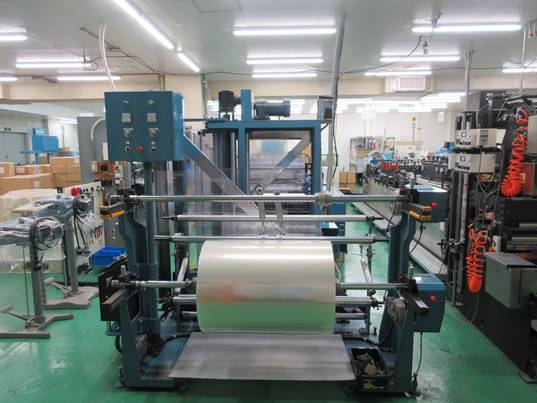

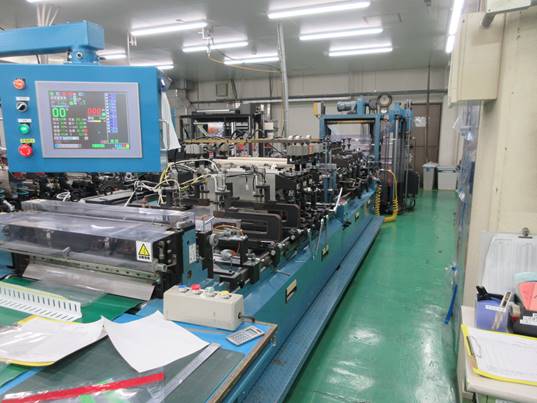

Bag making speed: 40-200 revolutions per minute *Bag making speed may be restricted by the type of base material, cut dimensions, etc. Raw paper width / 400mm-1250mm Raw paper diameter / MAX.800mmΦ Bag making chamfering / 1-4 chamfering Finished bag making dimensions / Width 75mm-600mm, length 50mm-500mm Machine weight / 6500kg Machine configuration Raw paper hooking section / Forced feed method for base material (inverter control), Mitsuhashi LPC device installed Powder brake device (automatic control) Monitor screen / Data input on the monitor screen using keyboard, ON/OFF switching of each device, numerical values of each device Settings, dimensions, sealing/feed ratio, speed setting, ON/OFF switching of alarms Raw paper feed mechanism / 2 Mitsubishi AC servos, computer controlled Cutting dimension detection sensor with reflective type (Sick) Thermostat (NACS *NISHIBE ASSOCIATION CONTROL SYSTEM) 16 units
CRT display multi-drop, communication type temperature control system, upper and lower limit temperature alarm
Seal upper and lower pressure mechanism/1 Mitsubishi AC servo, bell lever, toggle composite pressure method
Seal unit lift device when machine is stopped 1 unit
■Main power source
Electricity/AC200V three-phase motor load 13.8kw AC200V single-phase load resistance 28kw
Cooling water/10-15 liters/per minute
Bag making speed: 40-200 revolutions per minute *Bag making speed may be restricted by the type of base material, cut dimensions, etc. Raw paper width / 400mm-1250mm Raw paper diameter / MAX.800mmΦ Bag making chamfering / 1-4 chamfering Finished bag making dimensions / Width 75mm-600mm, length 50mm-500mm Machine weight / 6500kg Machine configuration Raw paper hooking section / Forced feed method for base material (inverter control), Mitsuhashi LPC device installed Powder brake device (automatic control) Monitor screen / Data input on the monitor screen using keyboard, ON/OFF switching of each device, numerical values of each device Settings, dimensions, sealing/feed ratio, speed setting, ON/OFF switching of alarms Raw paper feed mechanism / 2 Mitsubishi AC servos, computer controlled Cutting dimension detection sensor with reflective type (Sick) Thermostat (NACS *NISHIBE ASSOCIATION CONTROL SYSTEM) 16 units
CRT display multi-drop, communication type temperature control system, upper and lower limit temperature alarm
Seal upper and lower pressure mechanism/1 Mitsubishi AC servo, bell lever, toggle composite pressure method
Seal unit lift device when machine is stopped 1 unit
■Main power source
Electricity/AC200V three-phase motor load 13.8kw AC200V single-phase load resistance 28kw
Cooling water/10-15 liters/per minute
