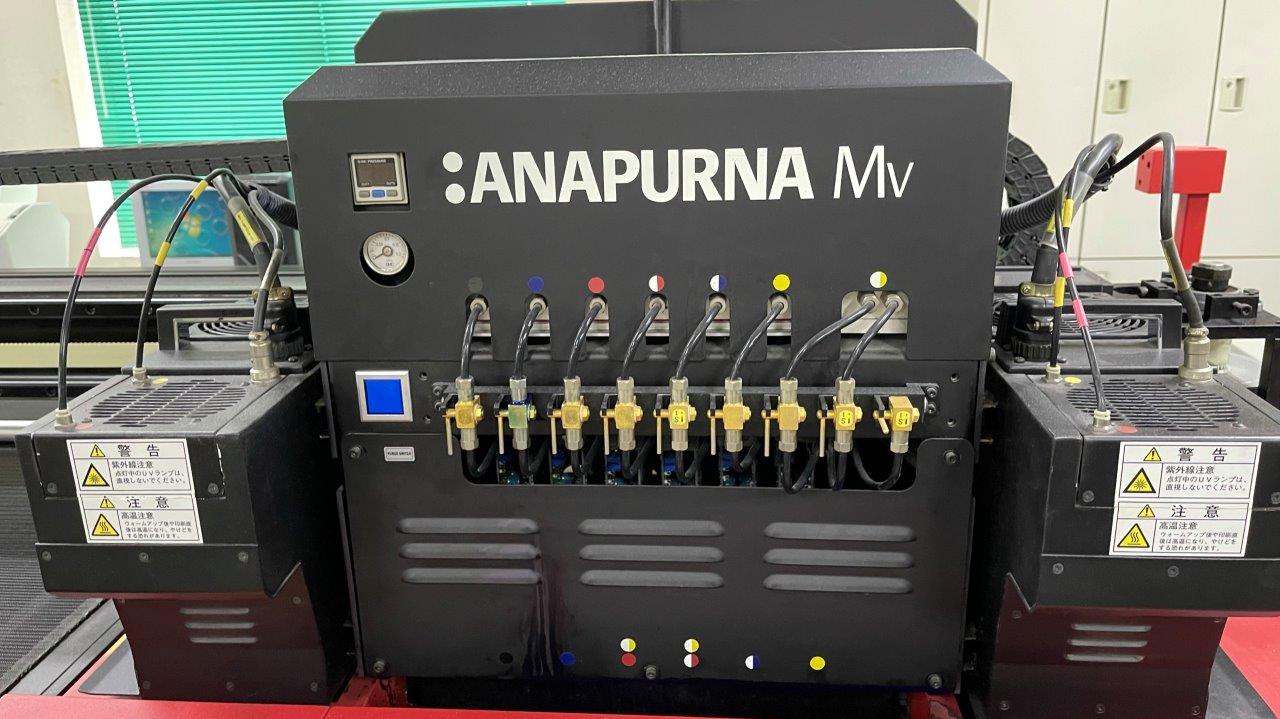

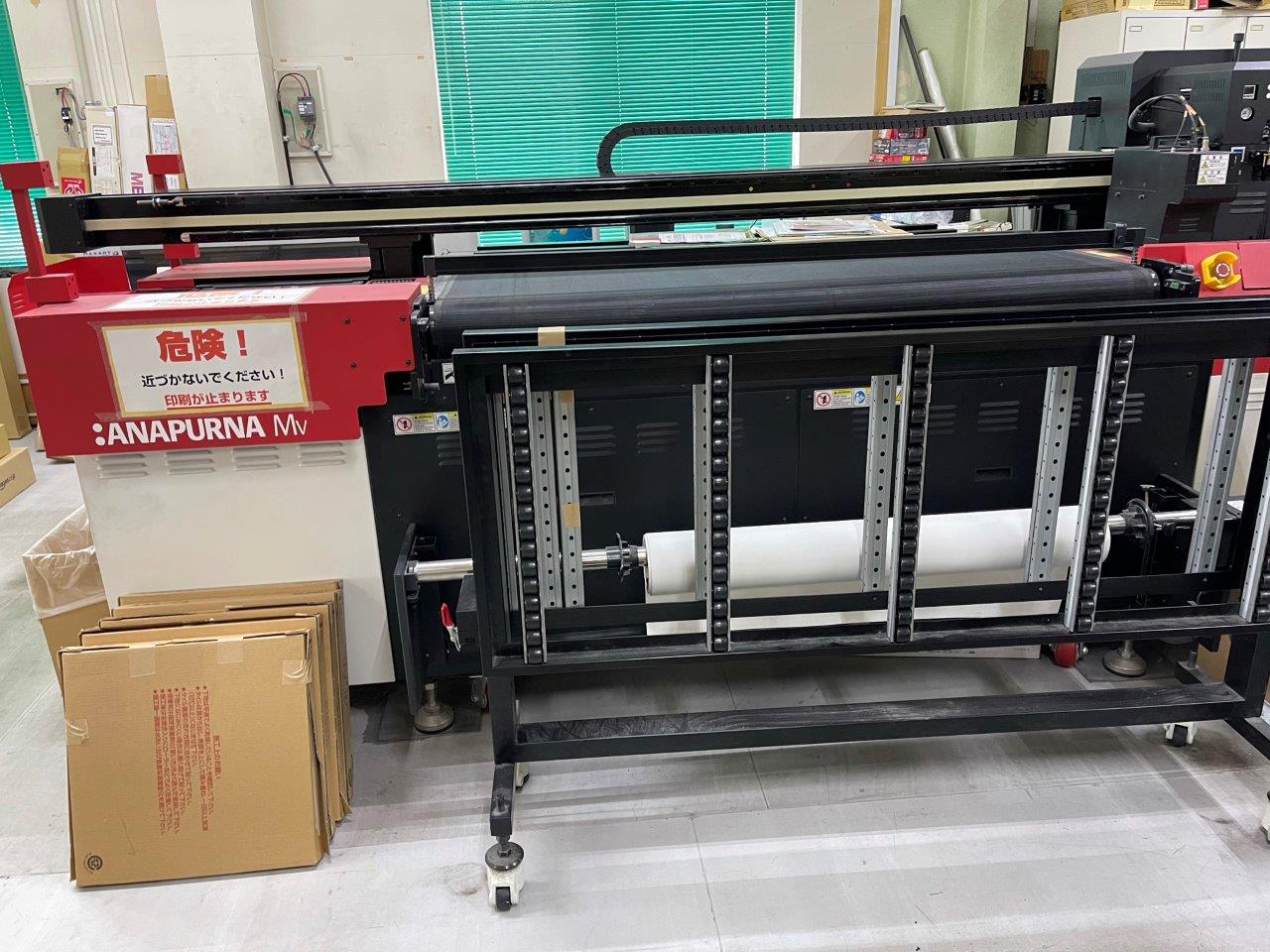

FLEXIBILITY OF CHOICE OF SUBSTRATES Support width up to 160 cm Printing width up to 158 cm Borderless printing Support width up to 152 cm Parallel printing Minimum size: A3, landscape Support thickness up to 45 mm Substrate weight up to 10 kg / m2 Two rigid tables (rear and front) Option: table extension Max. Extension 2.5 m long Printing on rolled media: Max.weight roll weight: 50 kg Max. roll: 36 cm TEXT QUALITY • Positive: 4 points • Negative: 6 points IMAGE QUALITY Bidirectional in 4 passes: quality mode for posters with images and text. No visible parasites at an observation distance of 1.5 m Unidirectional in 8 passes: superior photo quality mode for vector images and text, signs, solid supports • The lamps can be adjusted at half-power or at full power Brillantuniforme BORDERLESS PRINTING AND PARALLEL PRINTING INKS 7 UV curing inks: Anapurna Mw (CMYK, light cyan, light magenta + White) HEADS • 6 Konica-Minolta heads: 512 nozzles / head with a drop volume of 14 pl (fixed drop) • 2 Konica-Minolta heads: 512 nozzles / head with one 42 pl droplet volume for white (fixed drop) MAXIMUM PRODUCTIVITY 8 passes, unidir .: 720 x 1440 dpi - 4 m2 / h 8 passes, bidir .: 720 x 1440 dpi - 7.5 m2 / h 4 passes, unidir .: 720 x 720 dpi - 8.1 m2 / h 4 passes, bidir .: 720 x 720 dpi - 13.8 m2 / h DIMENSIONS 3,620 (W) x 1,600 (D) x 1,540 (H) mm WEIGHT 980 KG
